Replacement Parts

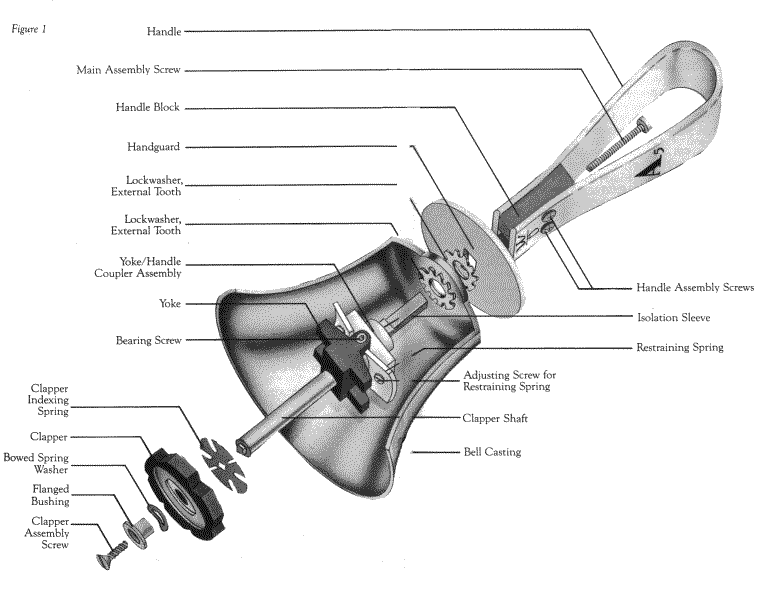

If and when it is necessary to order replacement parts for your handbells, always refer to the drawing in Figure 1.

Locate the part you need on the drawing, and use the correct name from the drawing.

Specify, also, the bell note for which the part is required, using the note designation that is on the handle of the bell.

Example: Main Assembly Screw for G#4 handbell
